RAMQUIP · GALVANIZED HANDLING SYSTEMS
Start with a working alley. Add a funnel, tub, lead-up pen, and sorting pens to build a handling setup that fits your space and the way you manage your flock.
Plan Your Setup Explore Panels and Gates
RamQuip’s galvanized panels and gates can be combined in different layouts. Choose a basic alley for everyday handling, or add the components you need to gather animals, guide them into the alley, and separate them into pens. The examples below show how a setup can grow step by step.
CONFIGURATION 01

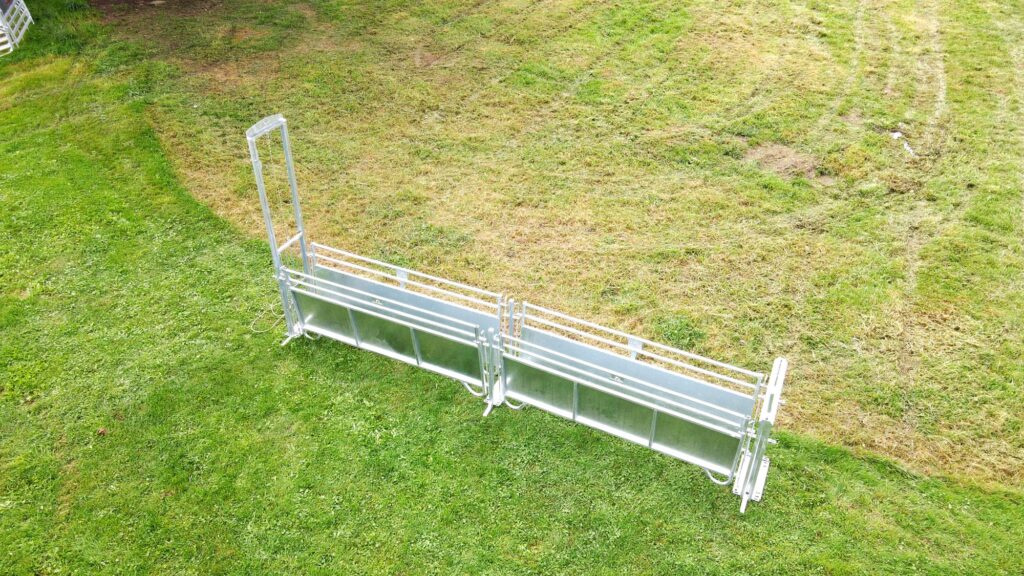

A straightforward starting point: a 16-foot alley with a rolling stop gate at the front and a guillotine gate at the rear.
Shown: 16-foot alley · rolling stop gate · rear guillotine gate.
Solid Alley Panels → Rolling Stop Gate → Guillotine Gate →
CONFIGURATION 02

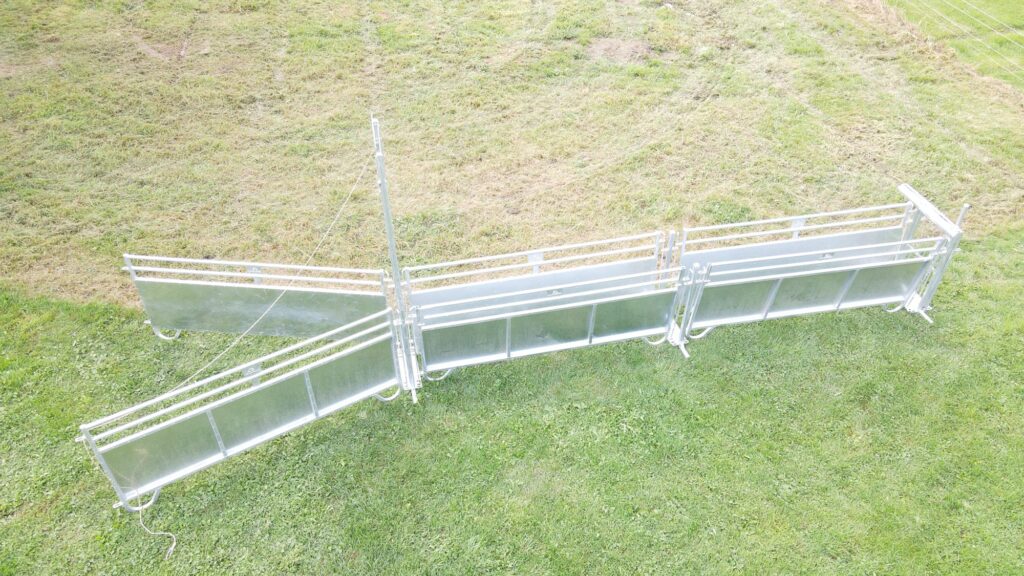

Add a funnel behind the alley to give animals a wider approach before they enter the single-file working area.
Shown: 16-foot alley · rolling stop gate · guillotine gate · lead-up funnel.
Solid Alley Panels → Rail Panels →
CONFIGURATION 03

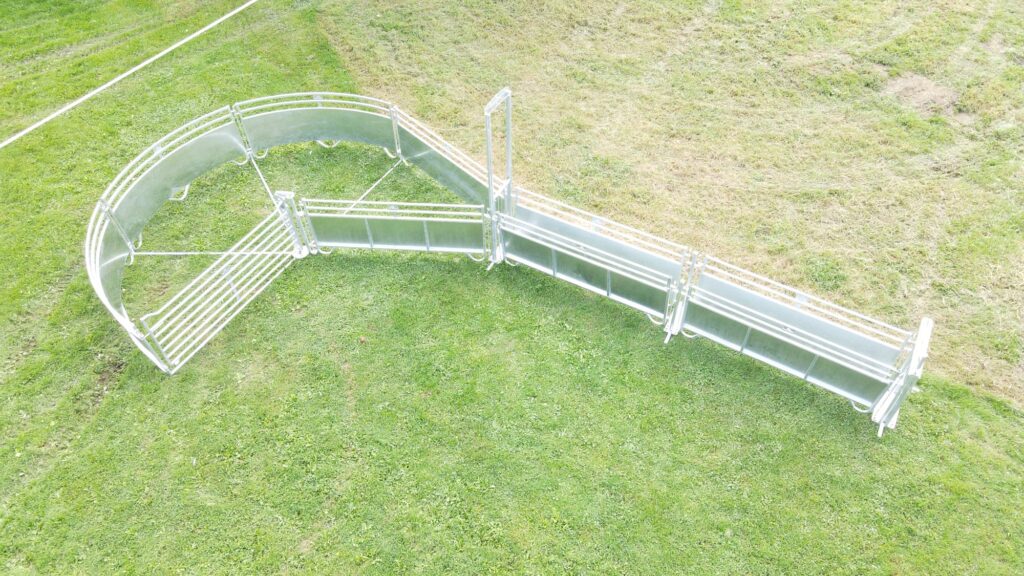

Connect an 8-foot tub and sweep gate to the funnel and alley. The curved gathering area provides a defined space from which to guide sheep and goats toward the alley.
Shown: rolling stop gate · 16-foot alley · guillotine gate · funnel · 8-foot tub and sweep gate.
Curved Tub Panels → Tub Sweep Gate and Post →
CONFIGURATION 04

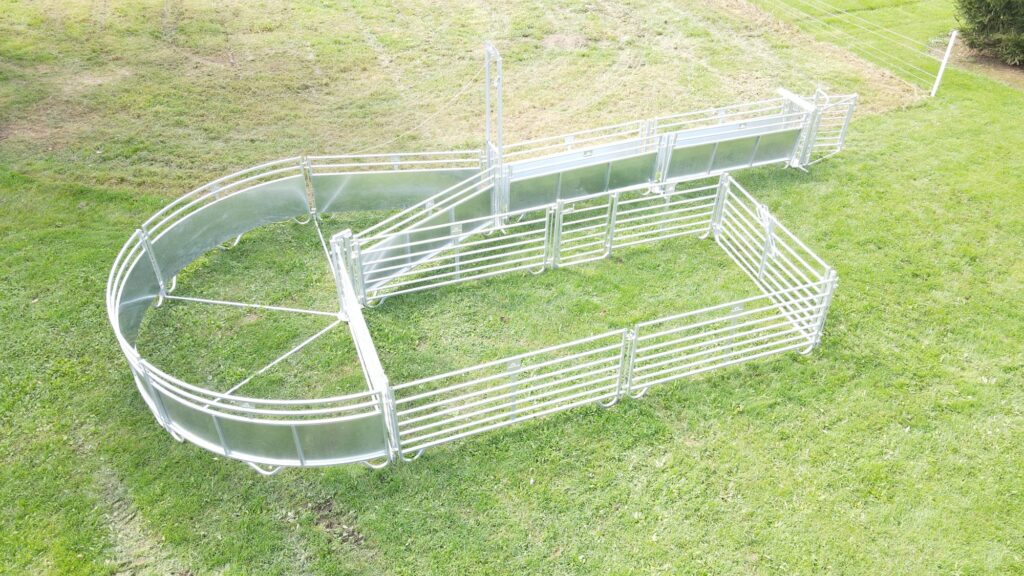

Bring animals into the tub from an 8-foot-wide, 16-foot-long lead-up pen. A two-way sort gate at the front adds the option to separate animals as they leave the working alley.
Shown: two-way sort gate · rolling stop gate · 16-foot alley · funnel · 8-foot tub and sweep gate · 8-by-16-foot lead-up pen.
Two-Way Sort Gate → Heavy Duty Rail Panels →
CONFIGURATION 05

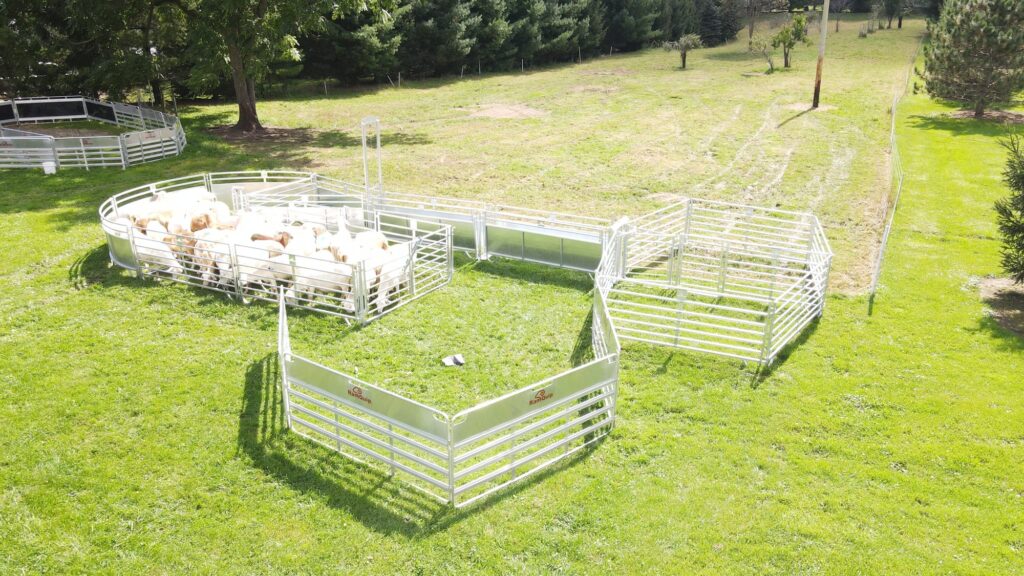

Add two sorting pens at the front of the deluxe layout to receive animals from the two-way sort gate. This example also shows extra 8-foot aluminum GoFlock panels for additional penning.
Shown: tub, funnel, alley, and lead-up pen · two-way sorting · two receiving pens · additional aluminum GoFlock panels.
Two-Way Sort Gate → Aluminum GoFlock Panels →Choose the panels and gates that give you the access and control you need in your handling area.

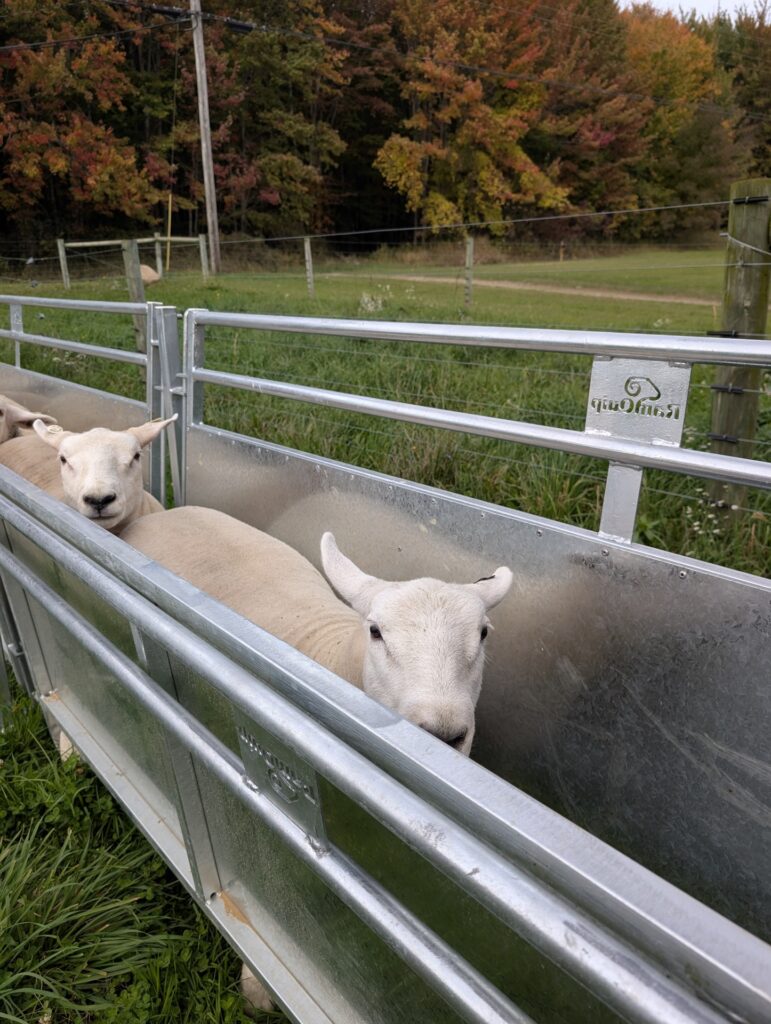

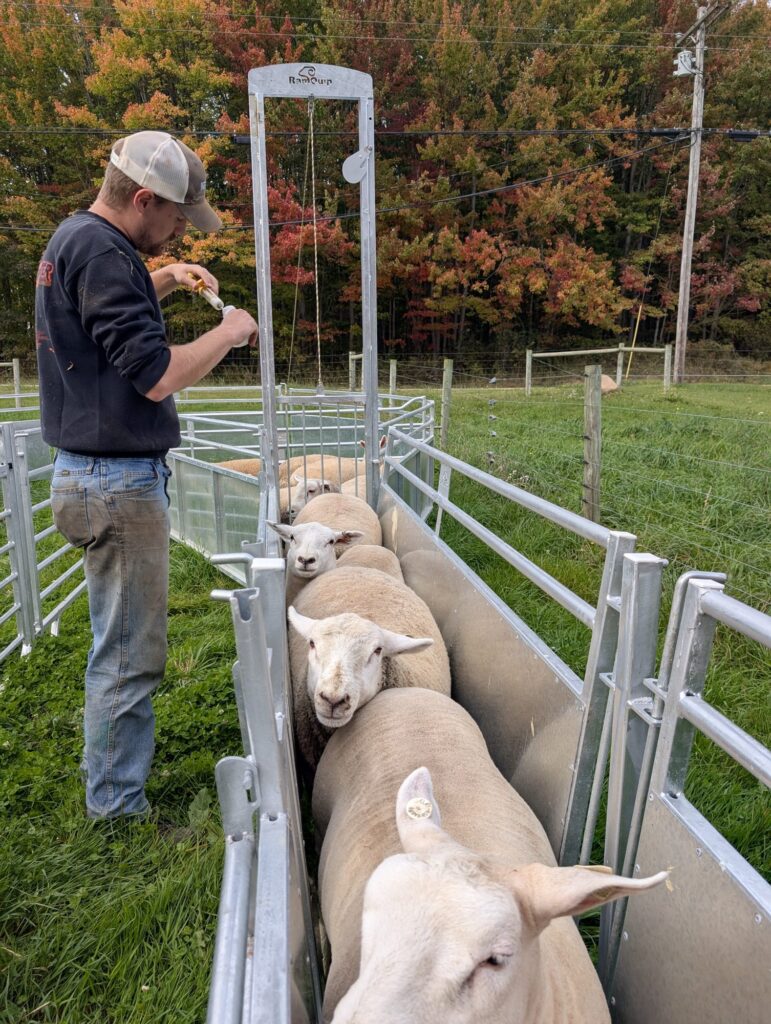

The optional solid alley panel with a fold-down upper section provides easier access to the sheep’s head and makes it easier to reach over the side of the working alley. These photos show the fold-down panel on the handler’s side of the alley, with the regular solid alley panel on the opposite side.

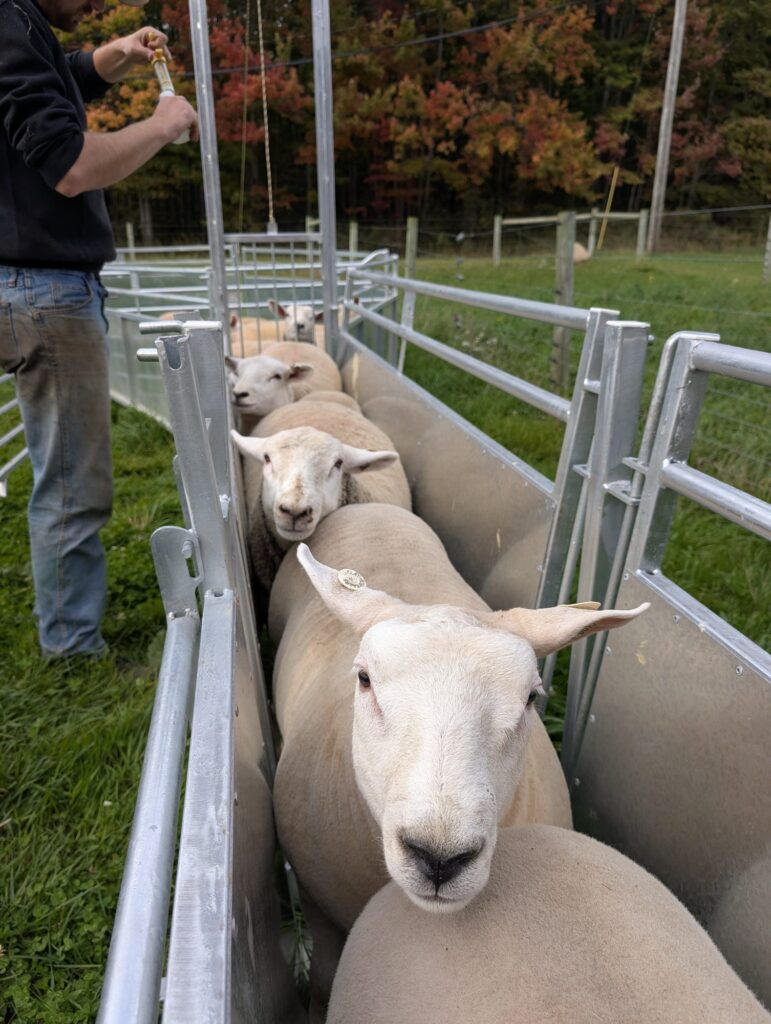

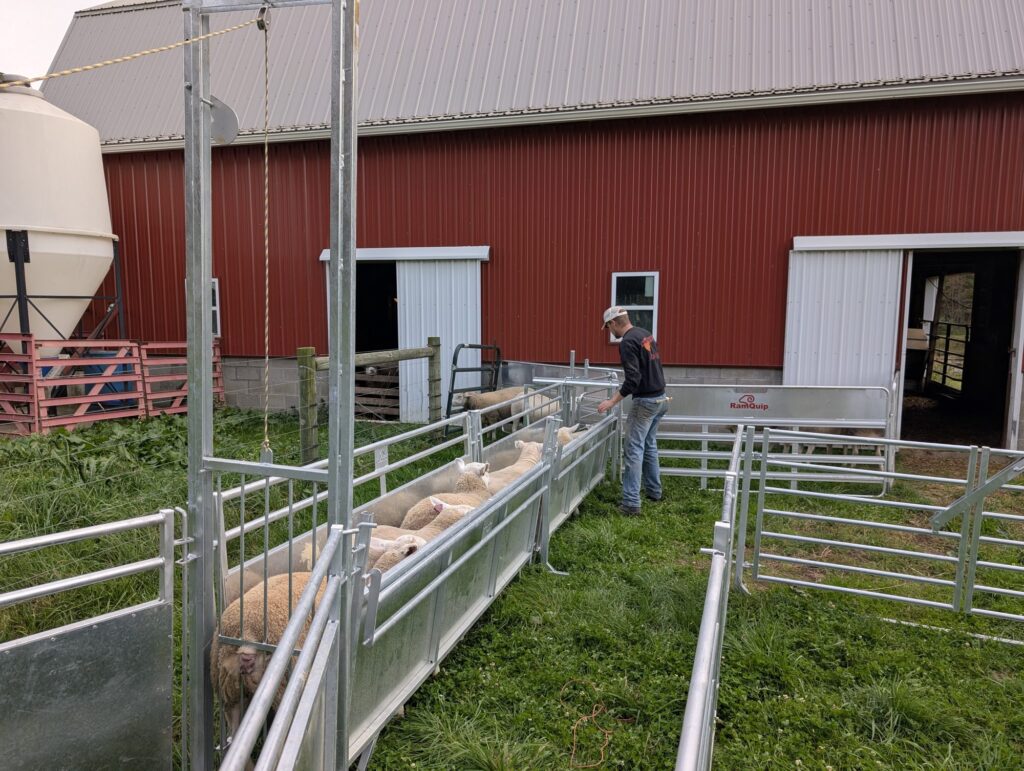

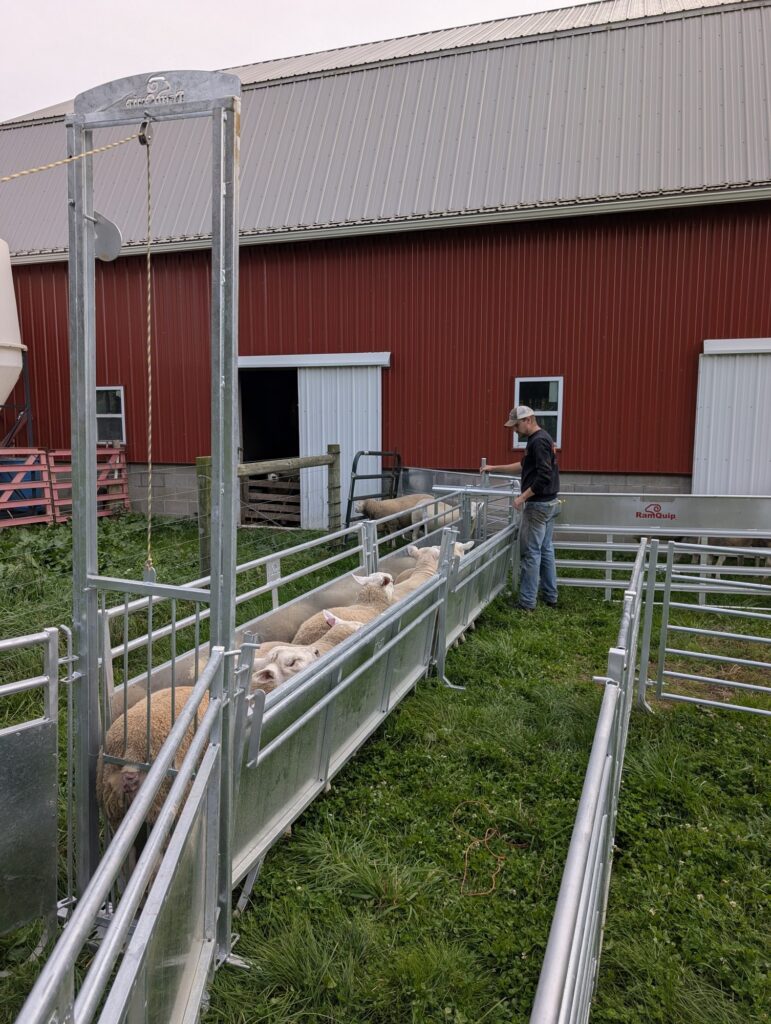

Place a guillotine gate at the rear of the alley to control entry into the working area. The gate lifts vertically, with the rope extending to the operating position.
Explore Guillotine Gate →Pair the rear gate with a rolling stop gate at the front to organize movement through the alley.
Explore Rolling Stop Gate →

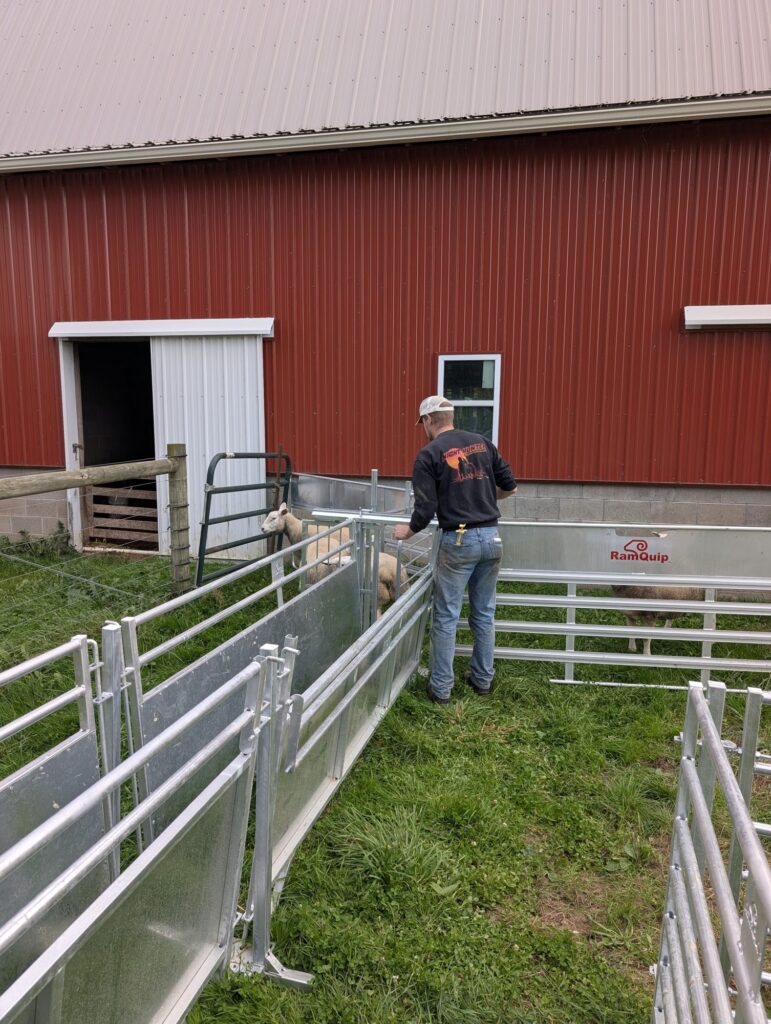

Use a two-way sort gate and rail panels to arrange receiving pens around the end of your alley. The right layout depends on your available space, entry points, and the groups you need to keep separate.
Explore Two-Way Sort Gate → Explore Heavy Duty Rail Panels →These layouts are starting points. Talk with RamQuip or your dealer about combining alleys, funnels, tubs, gates, and pens to suit your yard and your flock.
Find a Dealer Talk Through Your Layout
