8 ft Tub Sweep Gate and Post
A hot-dip galvanized sweep gate and post for your eight-foot sheep and goat handling tub. The sweep gate rolls through the center post on a stainless steel roller, with the post supported by four heavy-duty ground spokes.
Find a DealerEight-Foot Tub Sweep Gate and Post for Sheep and Goat Handling
The eight-foot tub sweep gate and post kit provides the working center of your sheep and goat handling tub. Its hot-dip galvanized construction gives farmers a durable, corrosion-resistant unit built for demanding farm use and long service life.

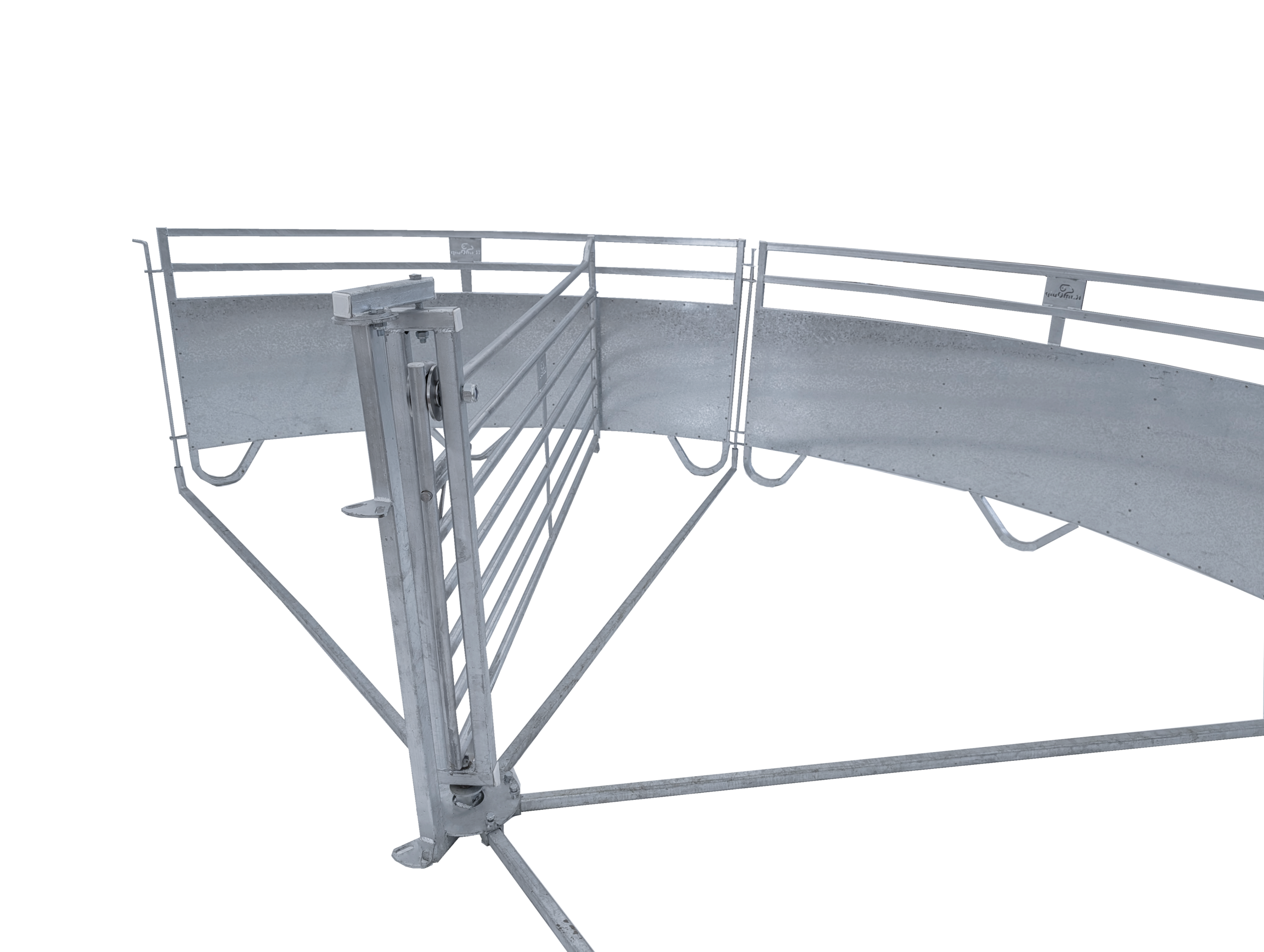

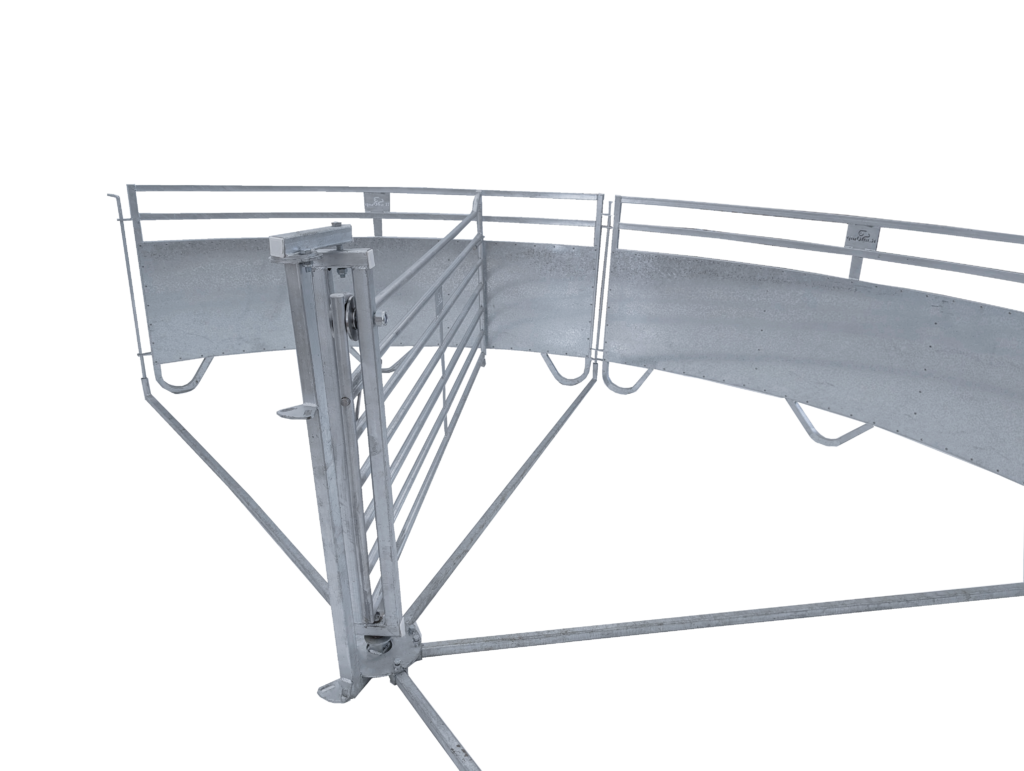

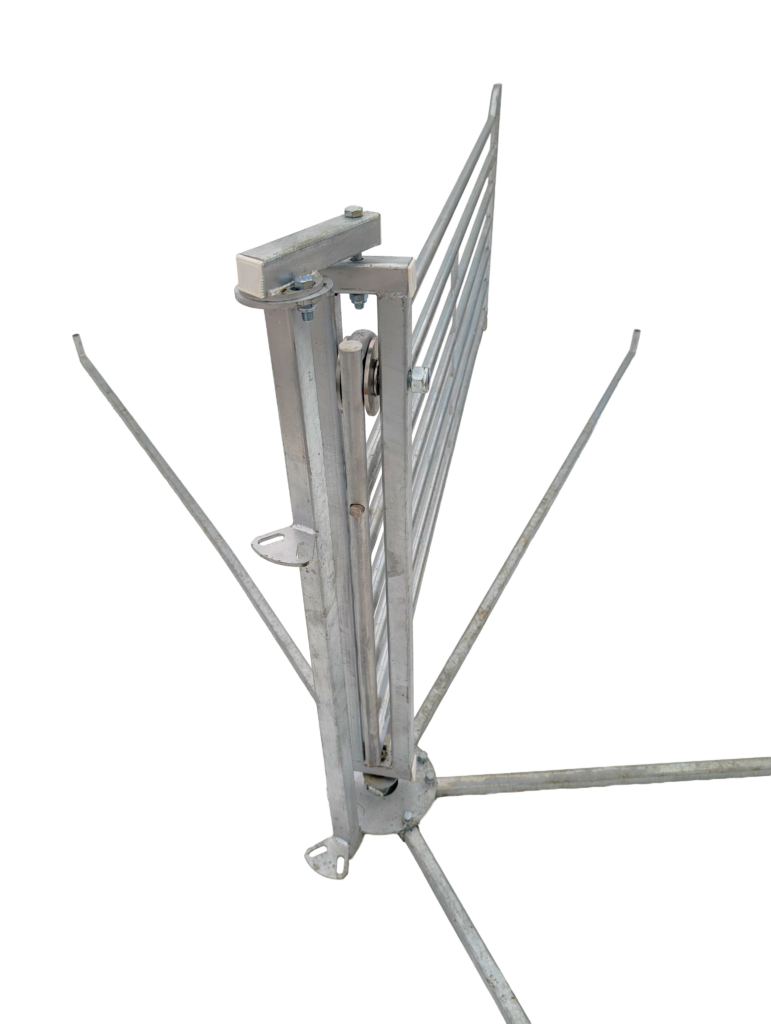

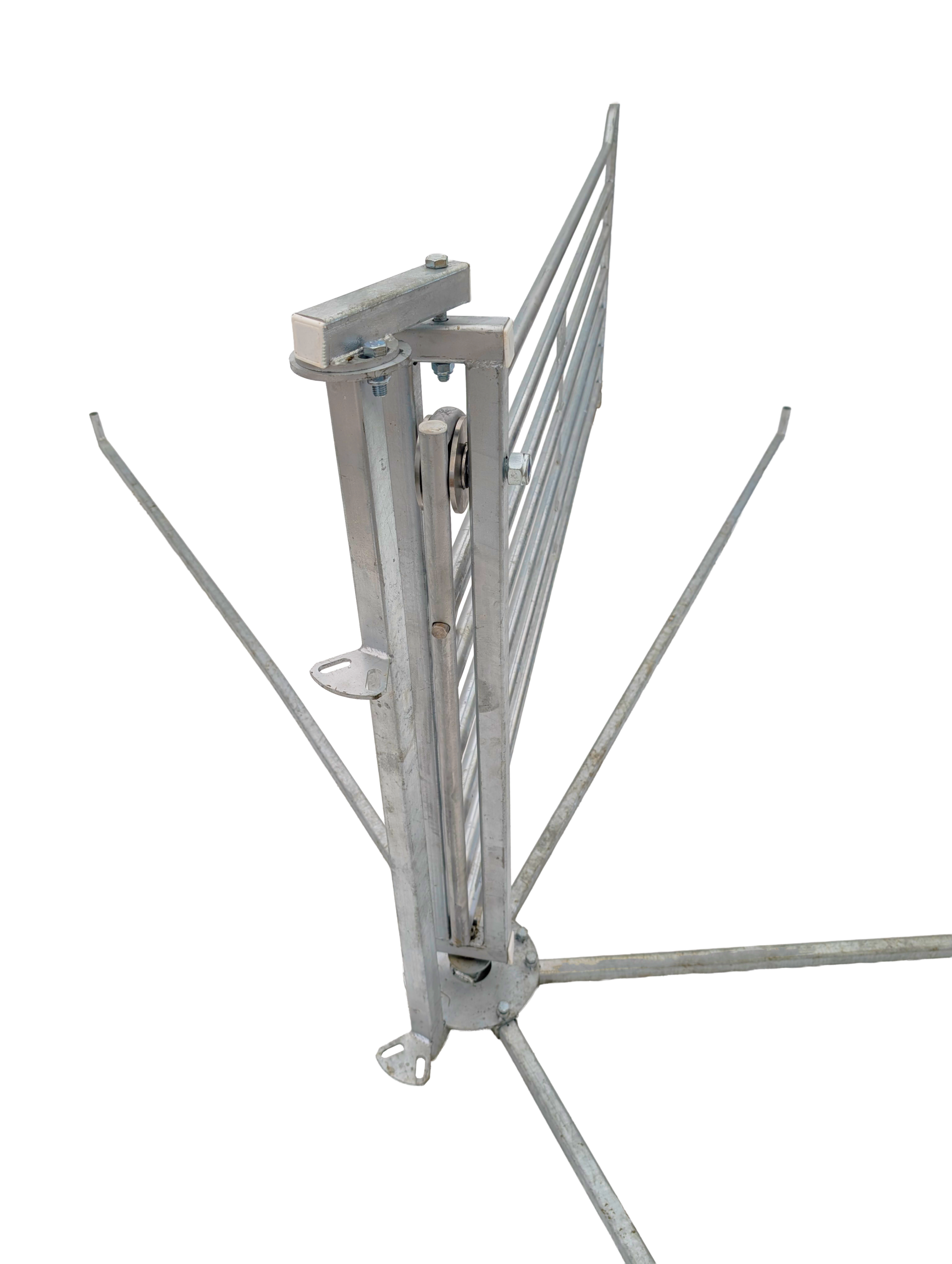

The sweep gate rolls through the center post on a stainless steel roller. Four heavy-duty ground spokes support the post and help position the panels to maintain the proper radius and circumference of the tub.
Complete Your Eight-Foot Tub
To complete your eight-foot tub, combine one sweep gate and post kit with three curved tub panels, two eight-foot solid alley panels to form a funnel from the tub into your alley, and eight 9/16-inch galvanized pins.
| Quantity | Component | Part number |
|---|---|---|
| 1 | 8 ft Tub Sweep Gate and Post | RQ-10101-250 |
| 3 | 8 ft Curved Solid Tub Panel | RQ-10101-050 |
| 2 | 8 ft Solid Alley Panel | RQ-10106-000 |
| 8 | 9/16-inch Galvanized Pin | RQ-10092-011 |
Sweep Gate and Post Specifications
- Part number
- RQ-10101-250
- Unit finish
- Hot-dip galvanized
- Roller
- Stainless steel
- Post support
- Four heavy-duty ground spokes
- Spoke function
- Support the post and maintain the tub’s proper radius and circumference
Pins are not included. All connecting pins must be ordered separately.
Components to Connect the Tub to an Alley
| Quantity | Component | Part number |
|---|---|---|
| 1 | 8 ft Tub Sweep Gate and Post | RQ-10101-250 |
| 3 | 8 ft Curved Solid Tub Panel | RQ-10101-050 |
| 2 | 8 ft Solid Alley Panel | RQ-10106-000 |
| 8 | 9/16-inch Galvanized Pin | RQ-10092-011 |
